?概述?
? ? ?靜電除塵過粉機是采用先進的德國靜電控制技術與高精度控制器組合為一體的自動化設備。觸摸屏界面操作，多功能控制選擇，設計人性化，更易操作控制。適用于電梯電纜、絕緣線、護套線、橡皮線、漆包線的生產過程。?
? 亮點?
? 高度集成化控制，觸摸屏一鍵啟動，實現無按鈕操作。 高壓靜電模塊,噴粉粉量
? 可自動根據產線速度自行調節，具有自適應功能
? 粉槍噴粉配置流量計，可實時檢測噴粉狀態，進行閉環控制。
?特點
? ? 模組化設計，整套設備分為靜電/流化/噴粉/除塵/電控5大模塊 。
? ? 2把可調靜電噴粉槍對置噴粉，確保全周粉量均勻穩定 。
? ? 獨立可調高壓靜電模塊，輔助粉量吸附調節。?
? ? 噴粉量無級調速控制，滿足各種粉量需求。?
? ? 儲粉腔震動/氣動攪拌/流化/流化氣體加熱/腔壁加熱功能設計，使粉體不易結塊且除濕干燥更 加迅速，易吸取。?
? ? 多腔體設計（儲粉腔/噴粉腔/抽風腔/動力腔），確保粉體不外溢 。
? ? 預啟動功能，快速處理并活用呆滯粉體。?
? ? 保養設置和提示功能，方便設備管理 。
? ? 粉量與線速聯動功能，減少產線耗料。?
? ? 大風量立式負壓除塵持續回收粉體并回用，確保周圍環境衛生和節約粉體??
? ? 三色報警燈及面板報警提示確?？梢暬?。
? ? 走輪設計，方便移位。
?技術參數
品名 | 靜電除塵過粉機 |
規格 | JRF-GF1000/45 |
中心高度 | 1000mm（可調） |
粉體顆粒 | 325目或以上 |
輸入電源 | 單相AC220V?50Hz |
最大功率 | 3kW |
空氣壓力 | 4Bar |
外形尺寸 | 800mm(長)?x?1200mm（寬）?x?1750mm（高） |
?優勢
? ?附著粉量均勻，穩定，可調
? ?粉體干燥快速，均勻
? ?模組化設計，方便后續設備升級和維修保養
? ?蓋箱可以開合，方便穿線作業
? ?設備運行中可以加粉
? ?精密泵體，確保運行可靠
?可定制：靜電除塵過粉機（分離式）
? ?
?可選配：增加粉量流量檢測儀（流量傳感器）
實時監控過粉機中滑石粉流量大小
一旦斷粉
報警提示? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
自動補償粉量

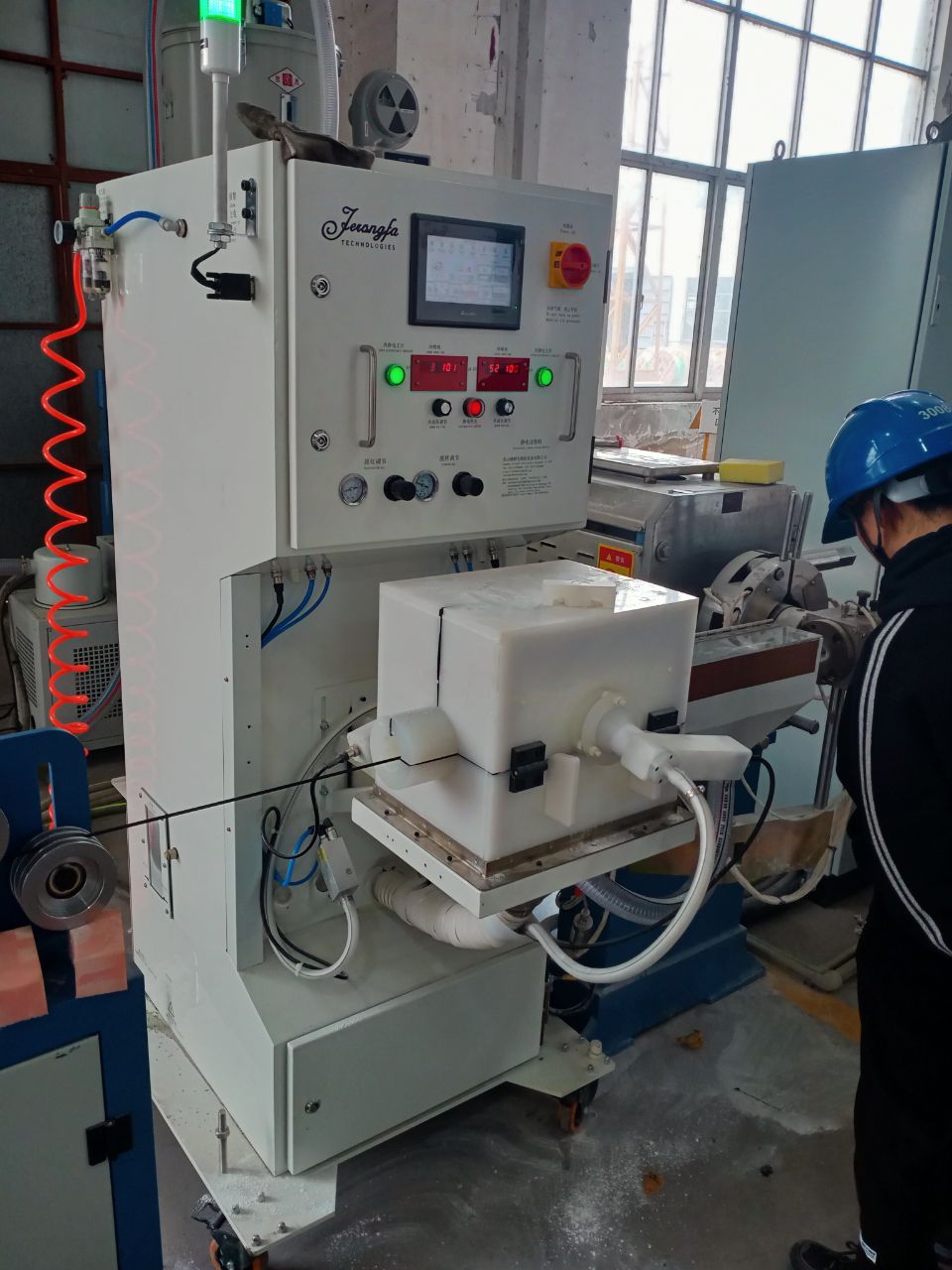

?客戶現場使用實例
靜電過粉機使用客戶群體，如下：
今皓光電 等等
